Smart-binder floor plans

These floorplans also apply to the Smart Label-binder and Smart News-binder.

Shortcuts:

Smart-binder SB-2/SB-3	View
Smart-binder SB-2/SB-3 with SB-095 sheet pile feeder	View
Smart-binder SB-2/SB-3 with SB-097 sheet pile feeder	View
Smart-binder SB-2XW/SB-3XW	View
Smart-binder SB-2XW/SB-3XW with SB-097 sheet pile feeder	View
Smart-binder SB-2/SB-3 with DMP-100 Perforator	View
Smart-binder SB-2/SB-3 with DMP-100 Perforator and SB-097 sheet pile feeder	View
Smart-binder SB-2/SB-3 with CIF-102 cover feeder, 2nd CIF-101 cover feeder and SB-097 sheet pile feeder	View
Smart-binder SB-2/SB-3 with F-100 folder	View
Smart-binder SB-2/SB-3 with F-100 folder, fed from a Tecnau u50 roll-unwinder, c51 web-cutter and t50 (short) interface conveyor	View
Smart-binder SB-2/SB-3 with F-100 folder, fed from a Hunkeler UW8 roll-unwinder and CS8 web-cutter	View
Smart-binder SB-2/SB-3 fed (in-line) from a web printer - with exam paper stacking, pile banding, pile buffering, wrapping and labelling	View
Smart-binder SB-2/SB-3 fed (in-line) from a web printer, and also near-line and off-line	View

Smart-binder SB-2/SB-3 & SLB

PNG file    Download
WEBP file Download
DWG file   Download
DXF file     Download
All measurements in mm

Smart-binder sb-2 and SB-3 Floor Plan

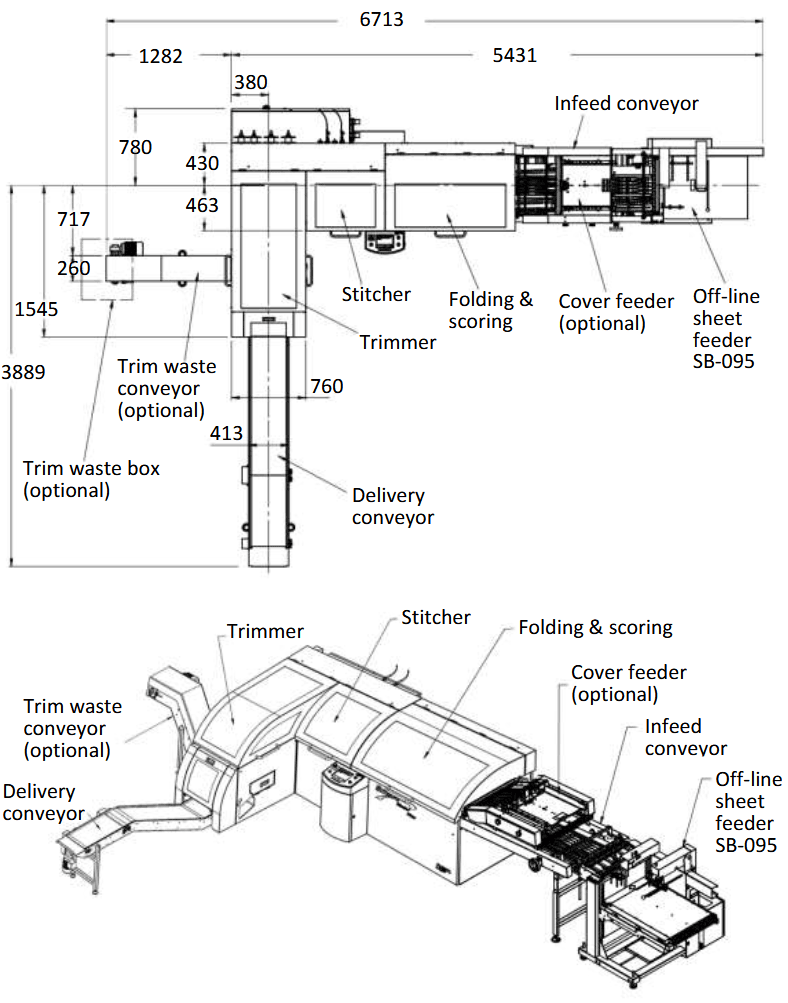

Smart-binder SB-2/SB-3 & SLB with SB-095 sheet pile feeder

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with SB-095 sheet pile feeder

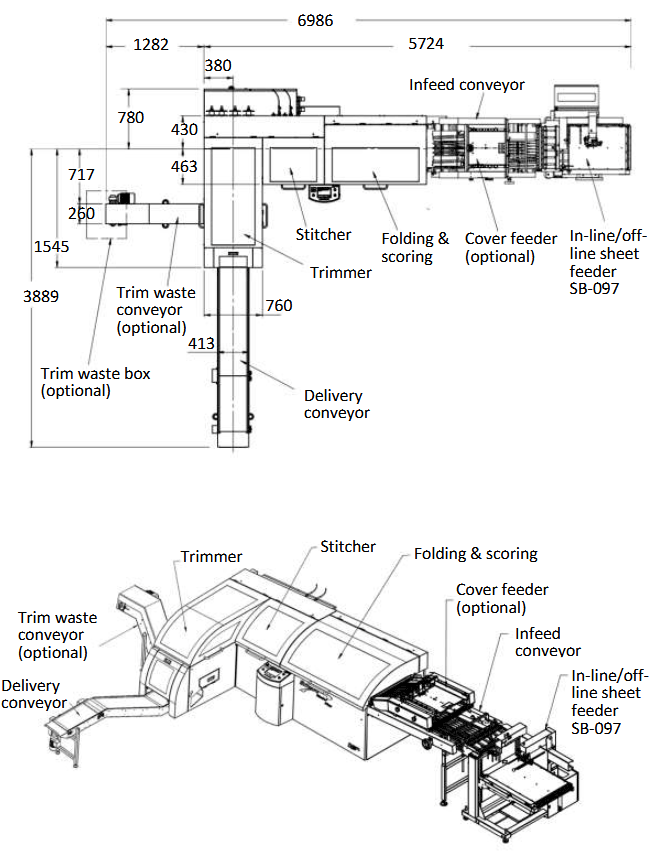

Smart-binder SB-2/SB-3 & SLB with SB-097 sheet pile feeder

Note: older version SB-097s (prior to Jan 2025) are 140mms shorter.

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with SB-097 sheet pile feeder

Smart-binder SB-2XW/SB-3XW & SLB-3XW

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder sb-2XW and SB-3XW Floor Plan

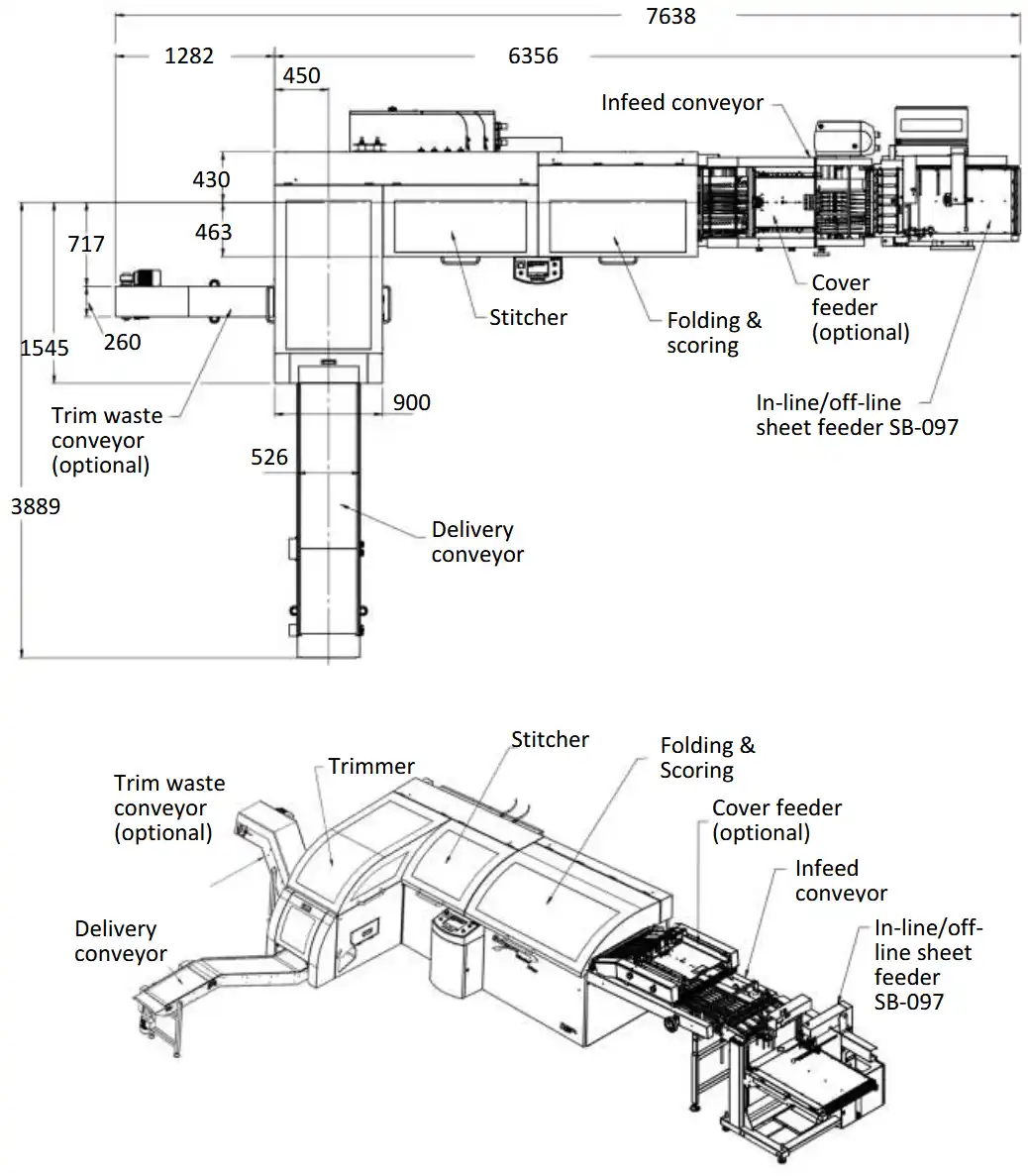

Smart-binder SB-2XW/SB-3XW & SLB-3XW with SB-097 sheet pile feeder

Note: older version SB-097s (prior to Jan 2025) are 140mms shorter.

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder sb-2XW and SB-3XW with SB-097 Floor Plan

Smart-binder SB-2/SB-3 & SLB with DMP-100 Perforator

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with DMP-100 Perforator

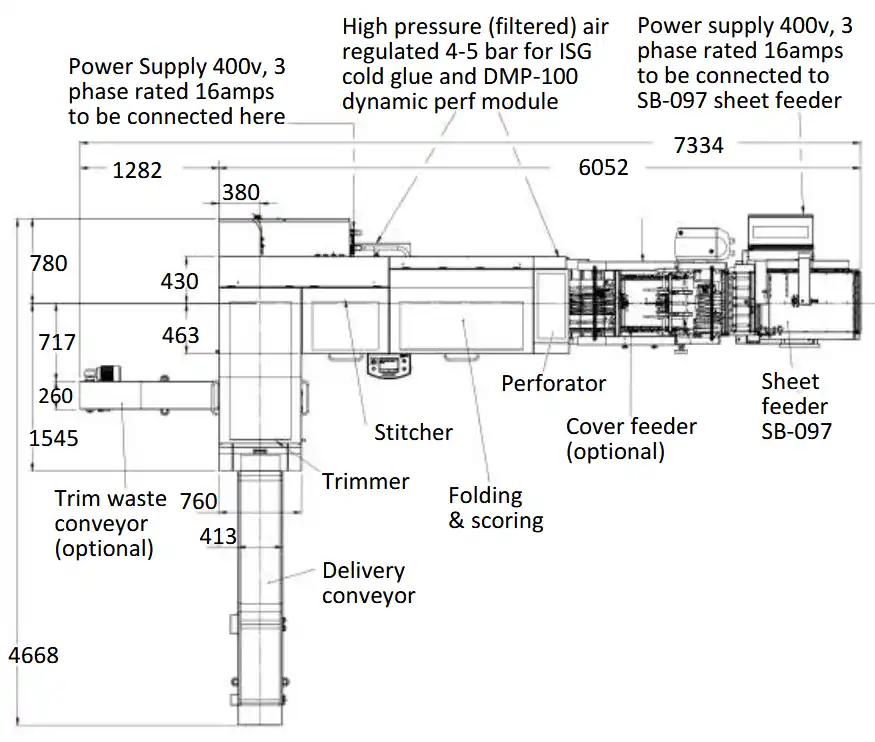

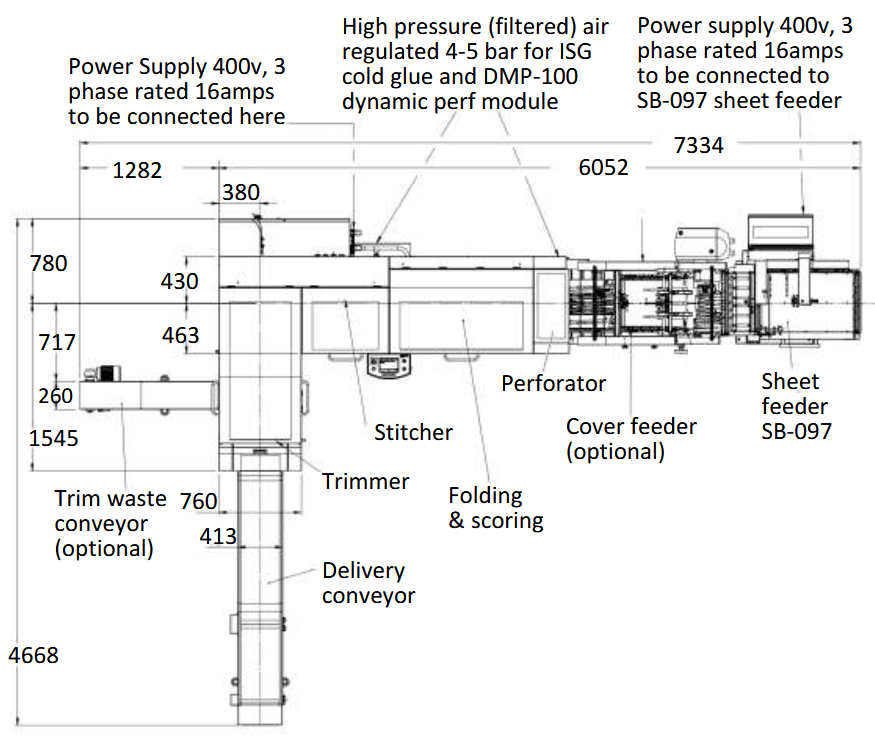

Smart-binder SB-2/SB-3 & SLB with DMP-100 Perforator and SB-097 sheet pile feeder

Note: older version SB-097s (prior to Jan 2025) are 140mms shorter.

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with DMP-100 Perforator and SB-097 sheet pile feeder

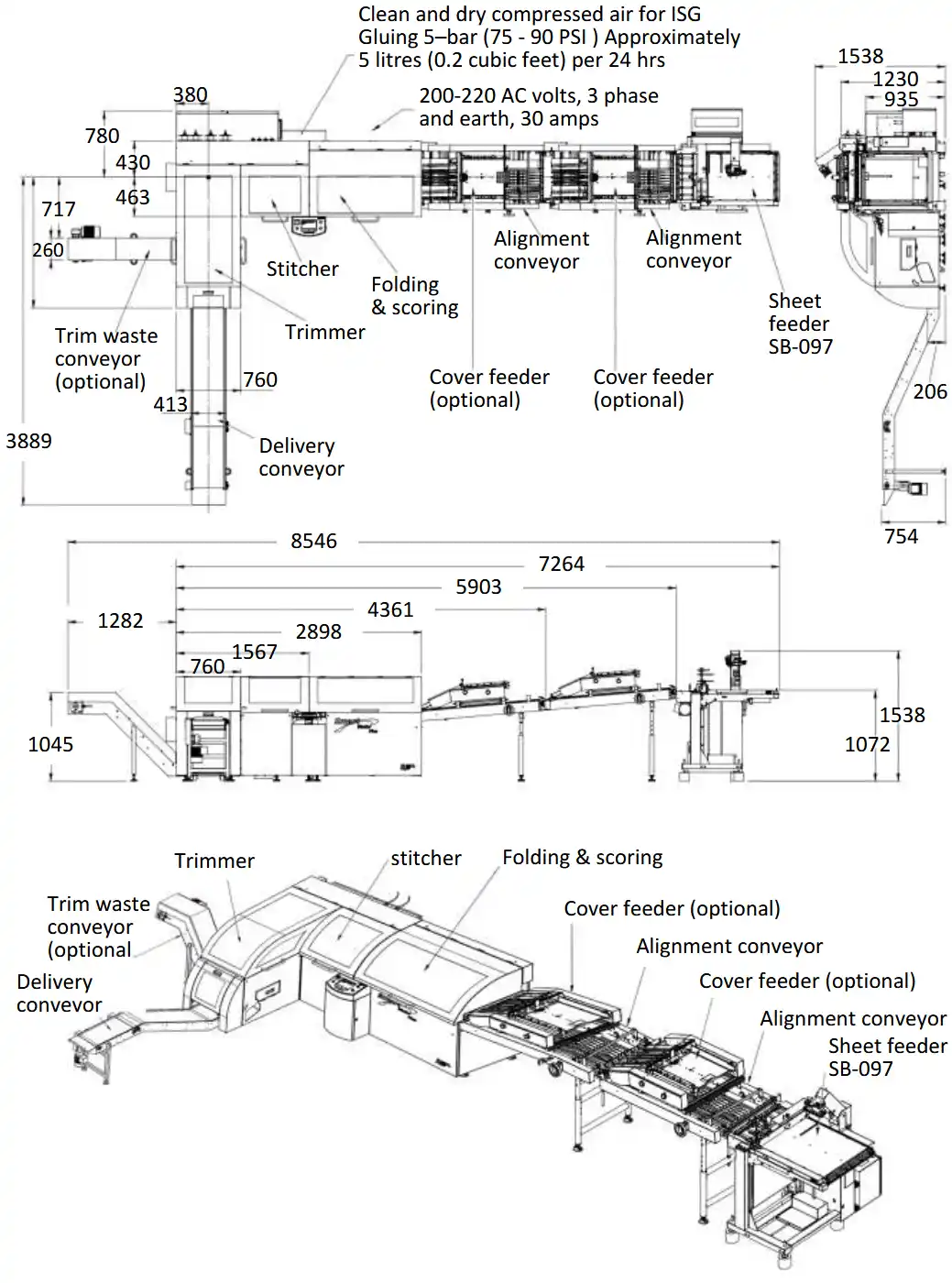

Smart-binder SB-2/SB-3 & SLB with cover feeder CIF-102, 2nd cover feeder CIF-101 and SB-097 sheet pile feeder

Note: older version SB-097s (prior to Jan 2025) are 140mms shorter.

PNG file Download
WEBP file Download
All measurements in mm

Smart-binder with cover feeder CIF-102, 2nd cover feeder CIF-101 and SB-097 sheet pile feeder

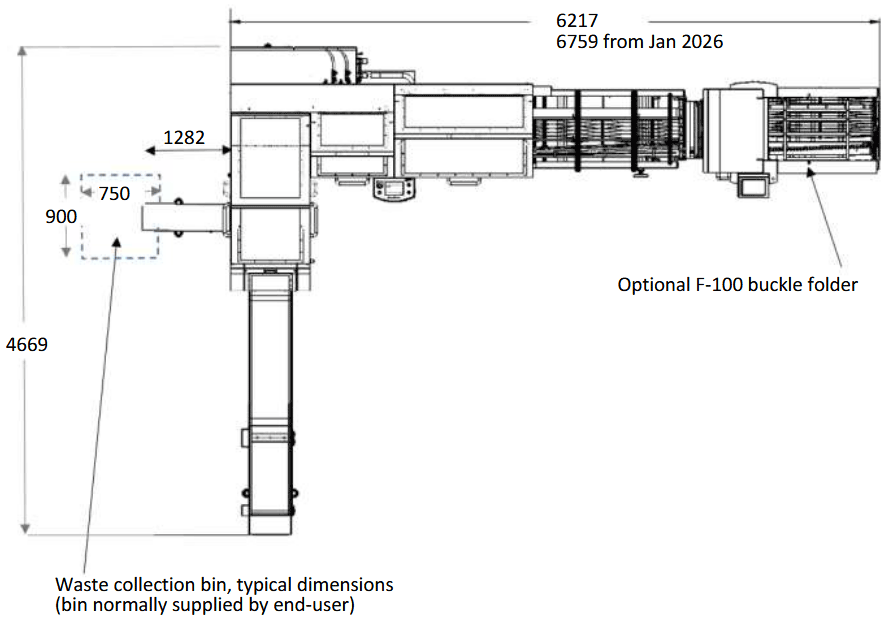

Smart-binder SB-2/SB-3 & SLB with F-100 folder

PGN file Download
WEBP file Download
All measurements in mm

Smart-binder SB-2/SB3 with F-100 folder

Smart-binder SB-2/SB-3 with F-100 folder, fed from a Tecnau u50 roll-unwinder, c51 web-cutter and t50 (short) interface conveyor

PGN file Download
WEBP file Download
All measurements in mm

Smart-binder SB-2/SB3 with F-100 folder

Smart-binder SB-2/SB-3 with F-100 folder, fed from a Hunkeler UW8 roll-unwinder and CS8 web-cutter

PGN file Download
WEBP file Download
All measurements in mm

Smart-binder SB-2/SB3 with F-100 folder

Smart-binder SB-2/SB-3 fed (in-line) from a web printer - with exam paper stacking, pile banding, pile buffering, wrapping and labelling (Solution A) Main page for layouts A and B

PGN file Download
WEBP file Download

Smart-binder fed in-line, near-line and off-line

Smart-binder SB-2/SB-3 fed (in-line) from a web printer, and also near-line and off-line

PGN file Download
WEBP file Download

Smart-binder fed in-line, near-line and off-line
